ADVENTURE VAN CONVERSIONS

BUILT FOR YOUR ADVENTURE.

At Off the Grid Vanworks, our semi-custom camper van conversions strike the perfect balance between affordability and personalization. Designed for Mercedes Sprinter and Ford Transit platforms, these builds offer flexibility without compromising quality.

Choose from a variety of pre-designed layouts tailored to fit your lifestyle, whether you’re a weekend explorer or a full-time van lifer. Our expert team ensures every detail—like energy-efficient appliances, off-grid solar systems, and optimized storage—is crafted to meet your needs.

Ready to hit the road? Contact us today to customize your van!

STANDARD FEATURES

  • 3M Thinsulate and Havelock wool insulation

  • Interior finishing birch plywood and interweave fabric

  • Sound deadening package

  • 3/4 birch subfloor with durable Lonseal finish

  • 3.0 GPM water pump

  • Kraus 14x18 stainless steel sink

  • Kraus Oletto spot free faucet

  • Exterior shower

  • Maxx air deluxe roof fan

  • Carbon monoxide alarm

  • AM auto half slider vented window

  • 10x33 slider bunk windows

  • Isotherm marine refrigerator with freezer compartment (85L or 130L)

  • OTG cabinetry with lighweight 3/4 maple ply and Wilsonart traceless HPL

  • Van essential window coverings

  • Headliner shelf

  • Switch Pros SP9100 controller for house loads

  • 400-amp hour Victron Lithium battery bank

  • 3000VA Victron Multiplus inverter charger

  • 30-amp 12V DC-DC charging from alternator

  • 30-amp shore power inlet

  • 200-watt Zamp solar array with 30amp MPPT charge controller

  • System monitoring with Victron GX 50 touch screen

  • 4 110v Outlets

  • 3 USB/USBC outlets

  • 2 12V sockets

  • Interior dimmable lighting

  • Auxiliary cabin fan

  • GE 700 watt microwave

  • Wilsonart solid surface countertop

  • Roamrest Ultimate 5” mattress

  • Owl vans explorer ladder/tire carrier

  • Dovetail drawer boxes with Blum undermount soft close slides

  • Sliding door and rear door bug screens

OPTIONAL ADD-ONS

  • Increase the amount of time you spend Off the Grid with a larger battery bank! We strongly suggest using one of these options if an Air Conditioner is required for your build.

    • Premium 12V: 600 amp-hours $1,500

    • Ultimate 12V: 800 amp-hours $3,000

    Larger 12V and 48V power systems available upon request.

  • Recharge your battery bank in more than half of the time of our standard 30-amp DC-DC charger! Includes a 280amp 12V high output alternator and Wakespeed regulator.

  • Utilize more energy from mother nature to power your continuous loads like refrigerators, lights, and fans endlessly.

    • 300-watt

    • 400-watt

    Larger custom arrays available upon request.

  • Eliminate bringing drinking water on your trip with a water filtration system from Guzzle H20. The Guzzle H20 stealth flex 5 utilizes a carbon block filter and UV light for safe and tasty drinking water.

  • For the most comfortable experience on those long road trips upgrade your front driver and passenger seats with the Vario seat from Scheelman.

    • Leatherette and cloth: $6,250

    • Full genuine Leather:

    • $8,559

  • Improve the ride of your van offroad with a RIP Kit from Agile Offroad! Includes an upgraded leaf spring pack, Bilstein front struts, Fox 2.0 auxiliary front shocks, Fox 2.5 rear digressive shocks, upper and lower double shear brackets, and wheel spacers.

  • The ultimate heating solution for cabin air and on demand hot water! The MCS7 system from Rixen’s enterprises is extremely efficient; burning only 2-5 amps of dc power per hour and .15 gallons of diesel per hour.

  • Make it easy to step into your AWD/4X4 van!

    AMP Research 144/170- $2,900

    Owl Vans explorer 144- $2,900

    Owl Vans 170- $3300

    Other options available upon request

  • Fill your front bumper with a recovery option for peace of mind off-road.

    Warn EVO 12-S $1700

    Warn Zeon 12-S $2,300

    Requires bumper or mounting plate option.

  • Give your campsite some shade while you enjoy the outdoors.

    Fiamma F45300 (144) - $1730

    Fiamma F45400 (170) - $1,950

    Other options available upon request.

  • Internet on the road! Includes a generation 3 Starlink and flatmount.

    Does not include Starlink subscription.

  • Have access to onboard air with an ARB air compressor kit!

  • Don’t want top commit to a fully enclosed shower box? Add our space spacing shower pan for the ability to shower inside.

  • Add additional sleeping for two with a Cloud Cap from Super Pacific! The cloud cap maintains roof functionality for the use of light bars, awnings and other accessories.

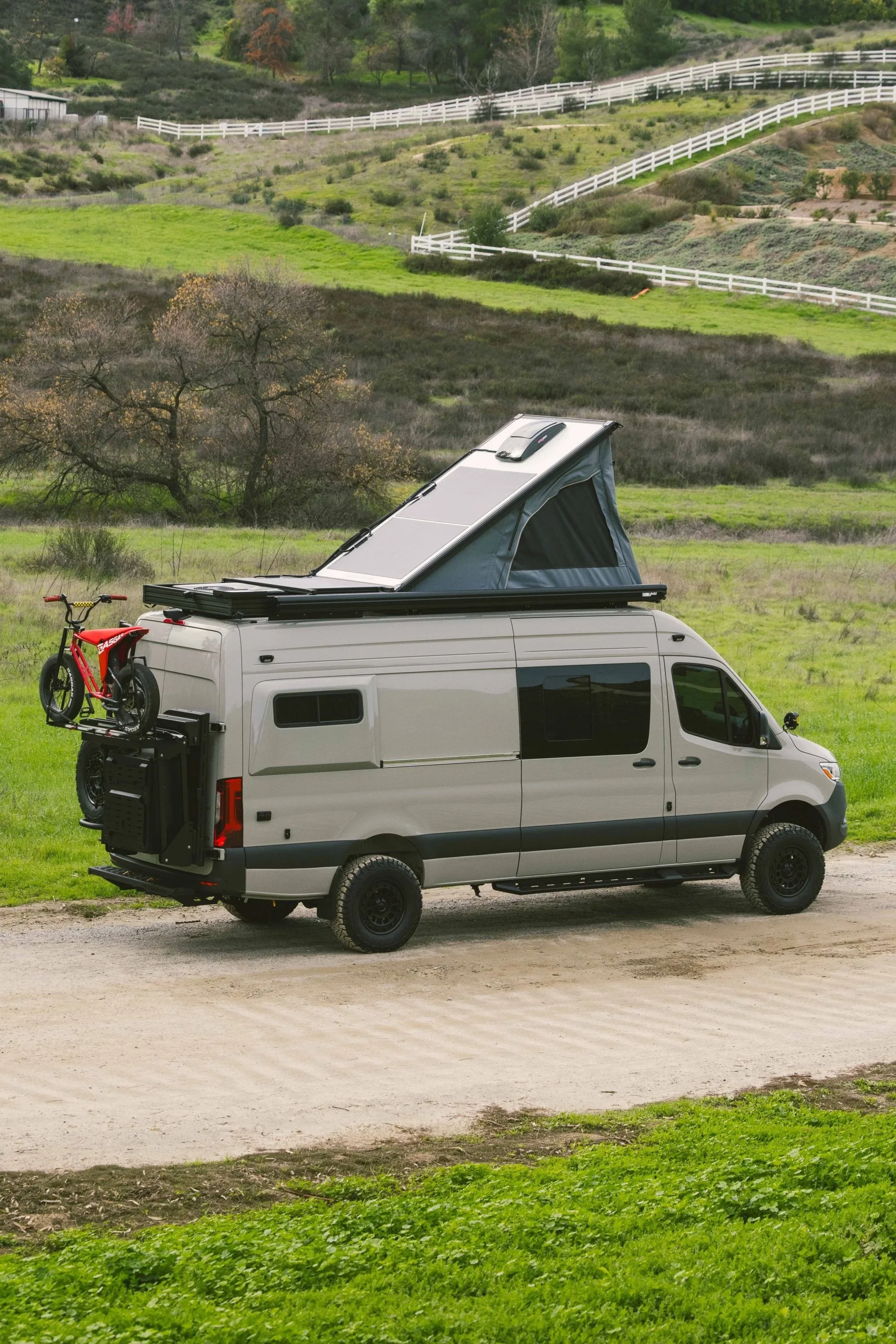

  • Add additional sleeping for two with a pop-up roof tent from SCA! The SCA 252 provides seamless integration with the vehicles roof. Paint matched to the color of the vehicle.

  • For the most comfortable experience in those colder climates.

  • Limit your time at the fuel pump and increase your range with a 47-gallon SB filters fuel tank.

  • Create a fully functional roof with an Explorer roof rack from Aluminess!

    • 144 Wheelbase $5,330

    • 170 Wheelbase $5,725

    Exterior lighting packages available separately.

  • Add an 11,380 BTU 12V X3 air conditioner from Nomadic Cooling for those hotter climate conditions. We reccomend selecting one of our “powered up” options along with the dual alternator to get the most functionality out of your AC unit.

  • Take advantage of all the real estate on your van with a B2 pro carrier from Owl vans!

    -B2 pro with mini monster box: $3,450

    -B2 pro with monster box: $3,749

    Does not include 180 degree hinges or B2 accesories

  • Add some extra protection to your van’s front end with a Pismo Bumper from Owl Vans.

    Other options available upon request.

  • Protect the rear end of your van with a bumper from Backwoods adventure mods.

    Bumper- $2,425

    With Rigid D series lights- $2,967

    Other options available upon request

  • Light up your campsite with 6 Baja Designs S2 pro lights in your Aluminess explorer roof rack.

    Pricing is for lighting in conjunction with Aluminess explorer roof rack.

  • Two Baja Designs LP9 pro lights mounted to your front bumper. Utilizes backlight feature and dash switch.

    Other lighting packages available upon request.

  • The Smartkey Starter from Mid City Engineering provides an alarm, remote start, and high idle capabilities.

    Does not include compustar drone or drone subscription.

  • Add an Aluminess Legacy side ladder for additional access to your roof.

Other and more options available upon request.

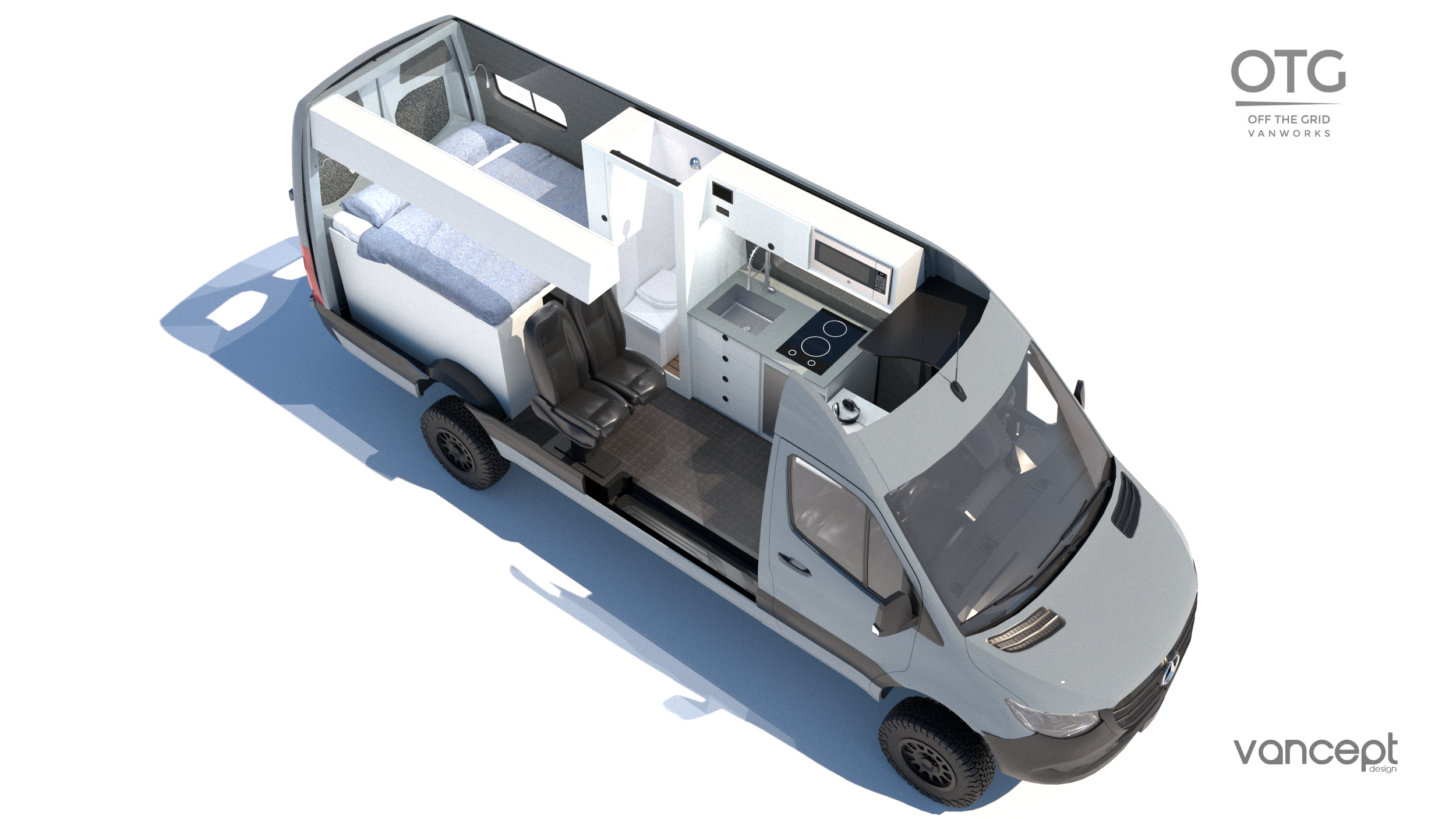

VAN CONVERSION CONCEPTS
